VDSL-Konverter

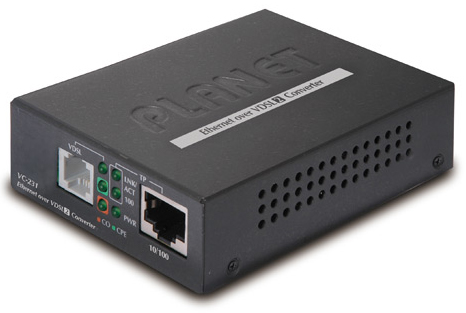

PLANET Fast Ethernet zu VDSL2 (Profile 30a) Medienkonverter,RJ45/RJ11RJ45 zu RJ11, Inkl. Netzteil VDSL2 kompatibelPLANET VC-231 is an Ethernet-over-VDSL2 Converter with high performance. It is designed based on two core networking technology, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers absolutely fastest data transmission speed over existing copper telephone lines without the need of rewiring.The VC-231 supports ultra-high performance to the pervasive telephone line network with up to 100/100Mbps symmetric data rate within 300m and 50/2Mbps for 1.4km long range connections.- Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution- One box design, CO / CPE selectable via DIP Switch- Defines symmetric band plan for the transmission of upstream and downstream signals- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards- DMT (Discrete Multi-Tone) line coding- Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control- One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection- Voice and data communication can be shared simultaneously based on the existing telephone wire- One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X- Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent- VDSL2 stand-alone transceiver for simple bridge modem application- Advantage of minimum installation time (Simply as Plug-and-Play)- Selectable target profile and target SNR margin- Supports extensive LED indicators for network diagnosis- Co-work with PLANET MC family Media Chassis (MC-700 / MC-1500/ MC-1500R / MC-1500R48)- Compact in size, easy installation
